A downstream virus-filtration step needed to be packaged as a self-contained skid with clear flow, safe pressure monitoring and easy filter change-out.
What we did

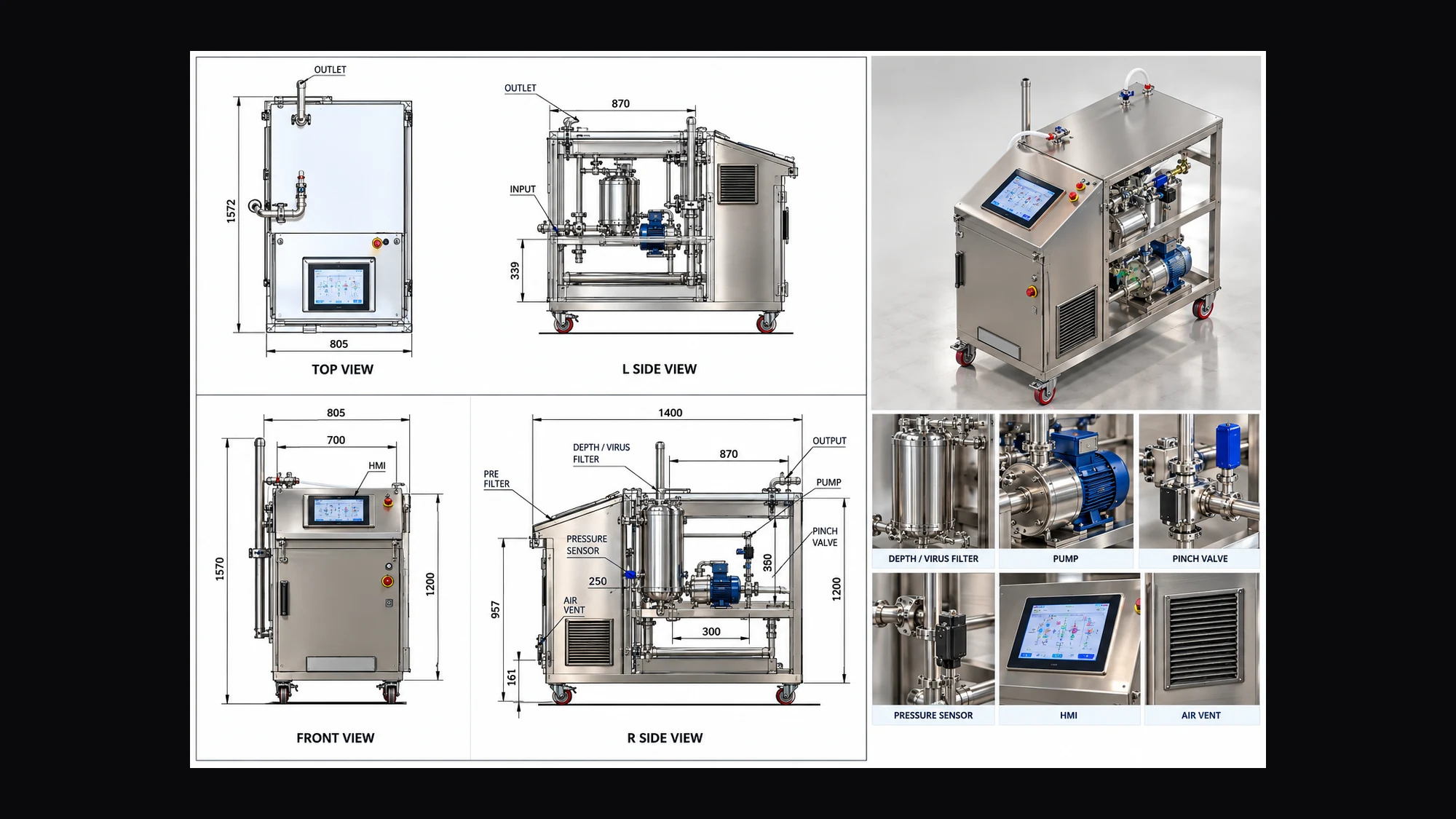

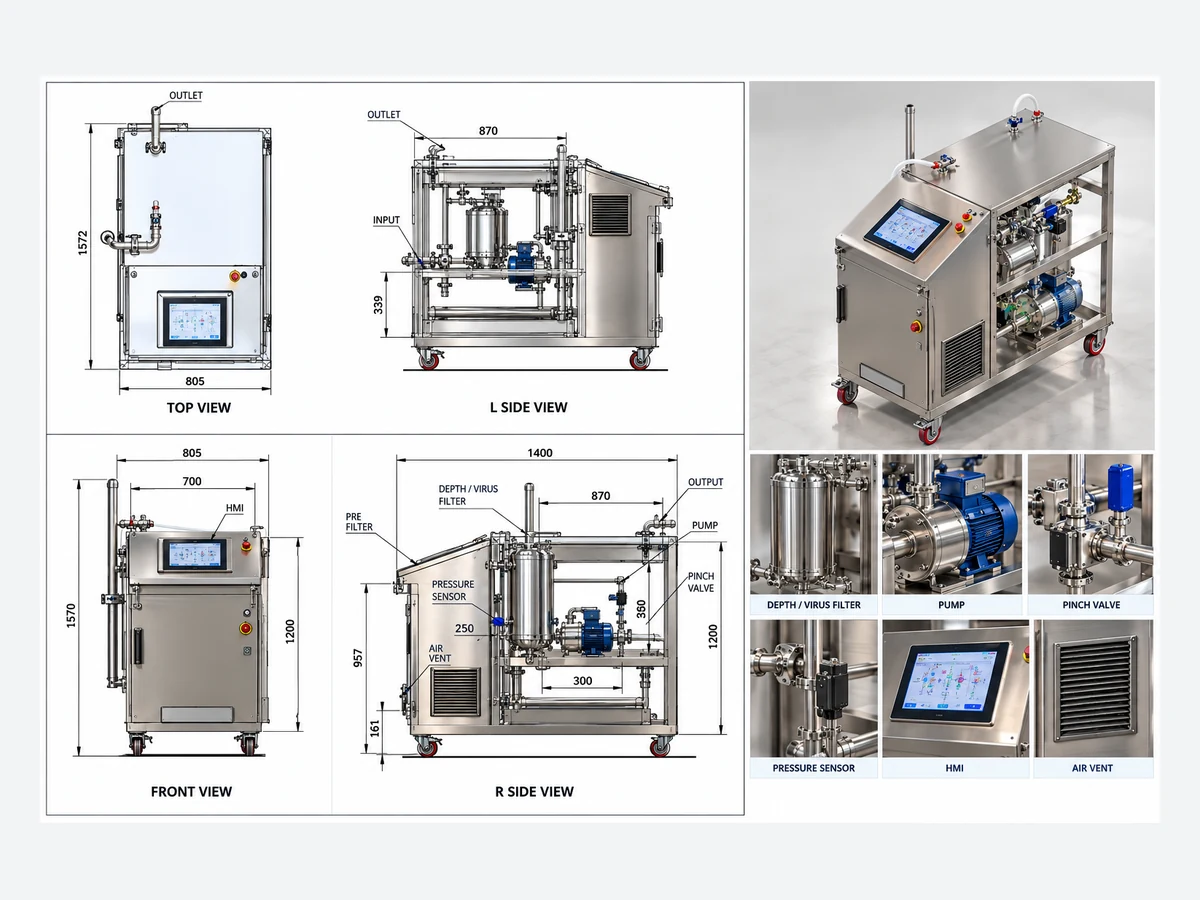

Flow diagram for the depth and virus filtration stages
Pump, pinch-valve and filter-housing layout
Pressure-sensor placement for integrity and differential monitoring
Service access and drain routing
The result
A buildable skid layout with a complete flow diagram and component list, sized for the required filtrate rate.
2 stagesDepth + virus filtration
DualRedundant pressure sensing
InlineFilter change-out access
