The joint design had to be frozen for production — every weld preparation, clearance and tolerance documented, with renders to align the team before release.
What we did

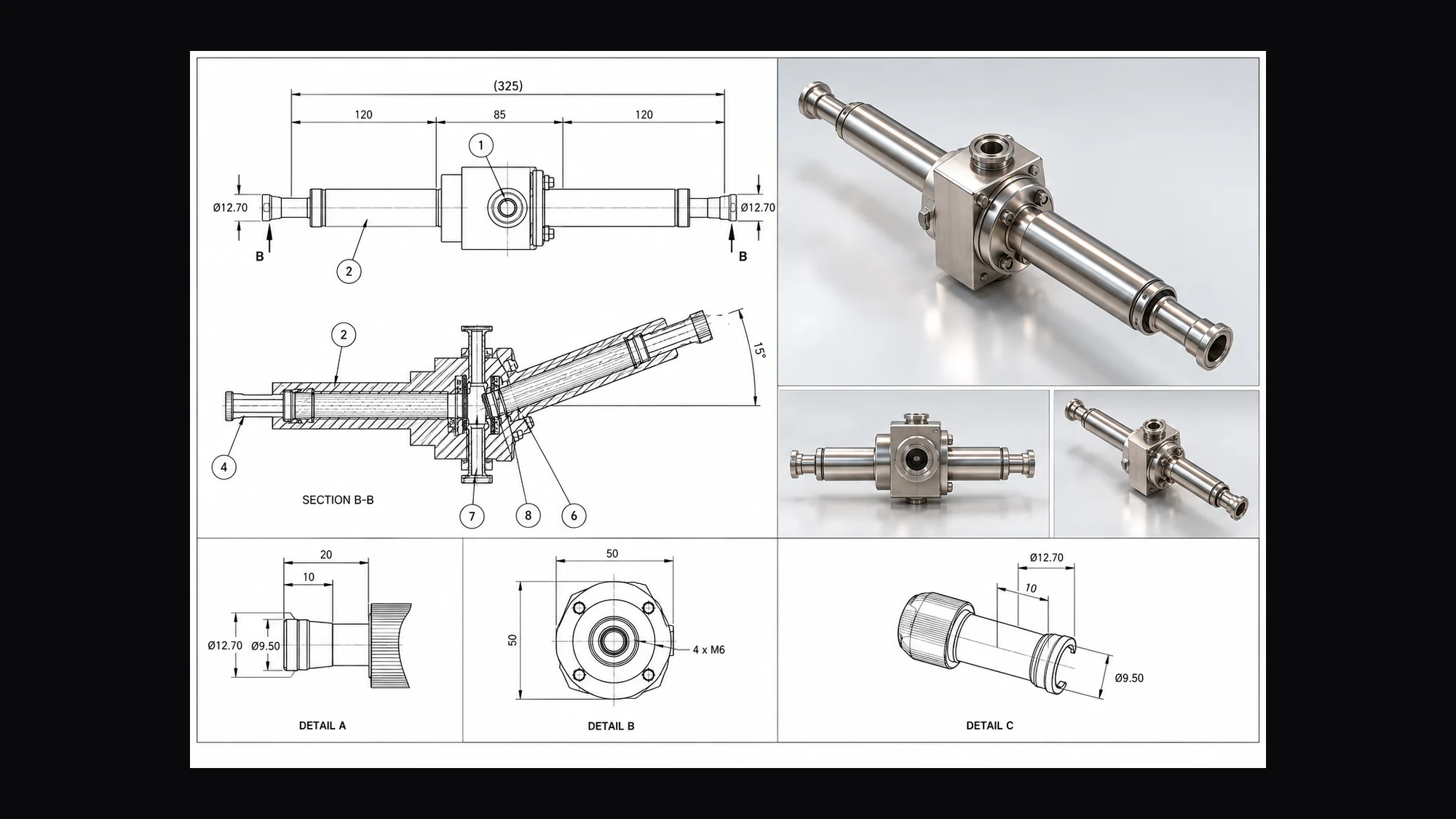

Multi-view blueprint with section and detail views
Weld-preparation and tolerance callouts
Photoreal renders for design review
Revision-controlled drawing set
The result
A locked, manufacturer-ready joint drawing that both the design team and the shop worked from with confidence.

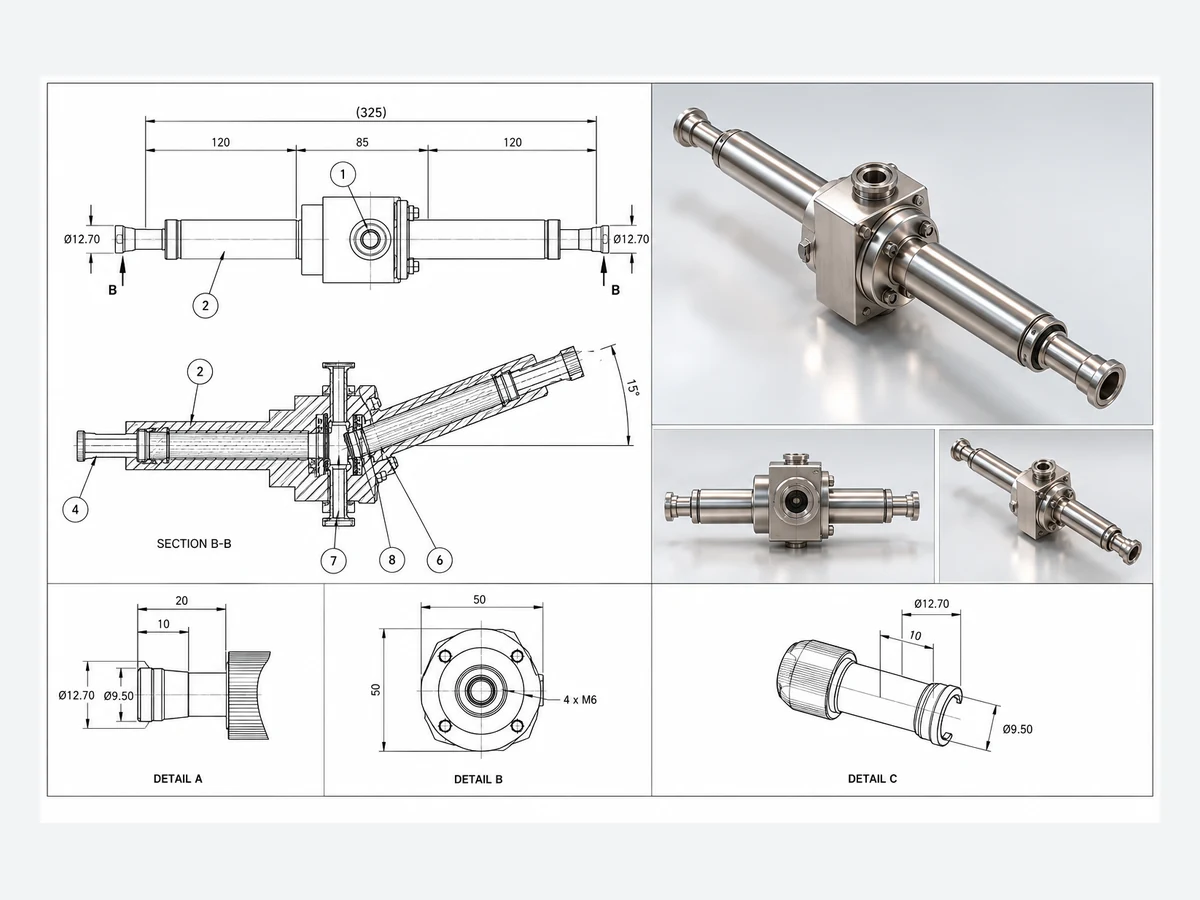

3DRenders and blueprint
SectionedDetail views
ReleasedRevision-controlled
