A fabricator needed a welded stainless frame detailed to the millimetre, with every member, cut and weld called out so it could go straight to the shop floor.
What we did

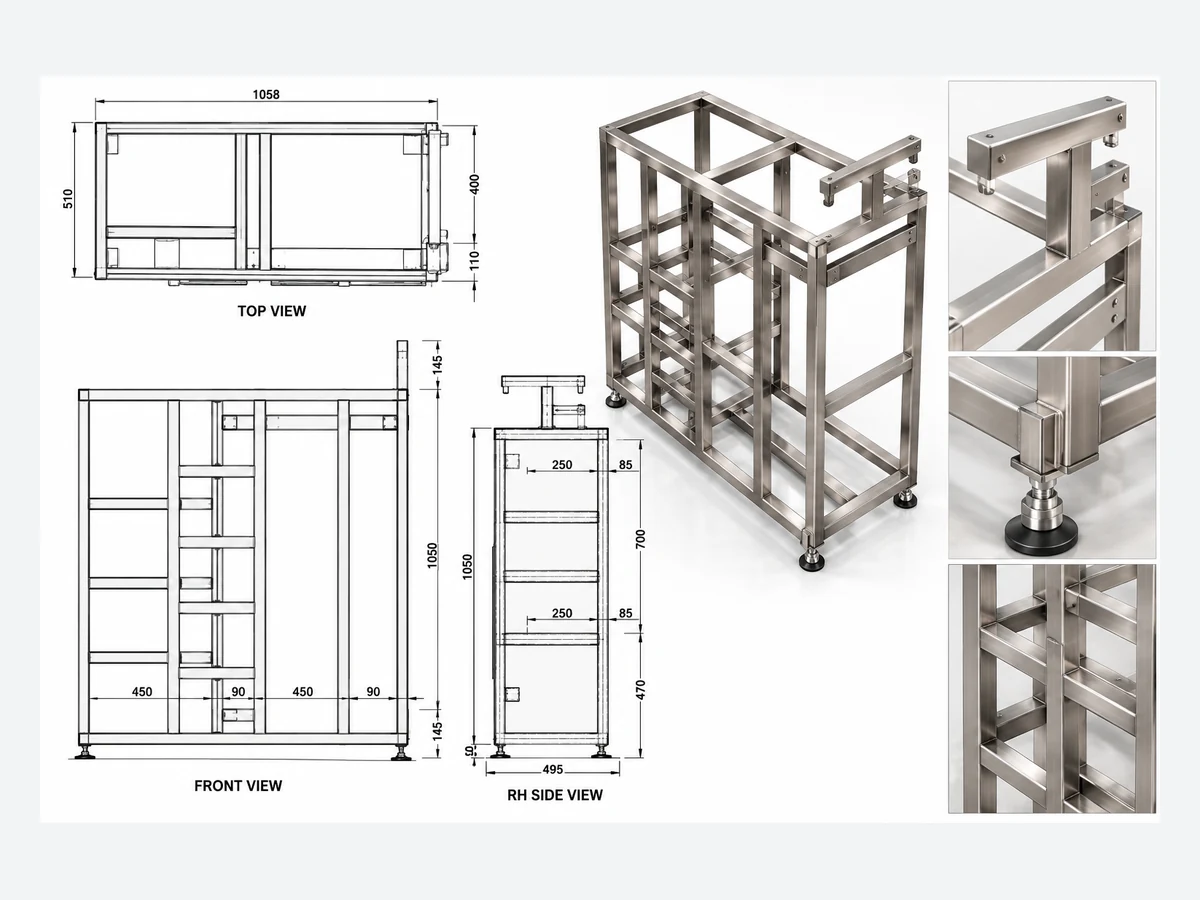

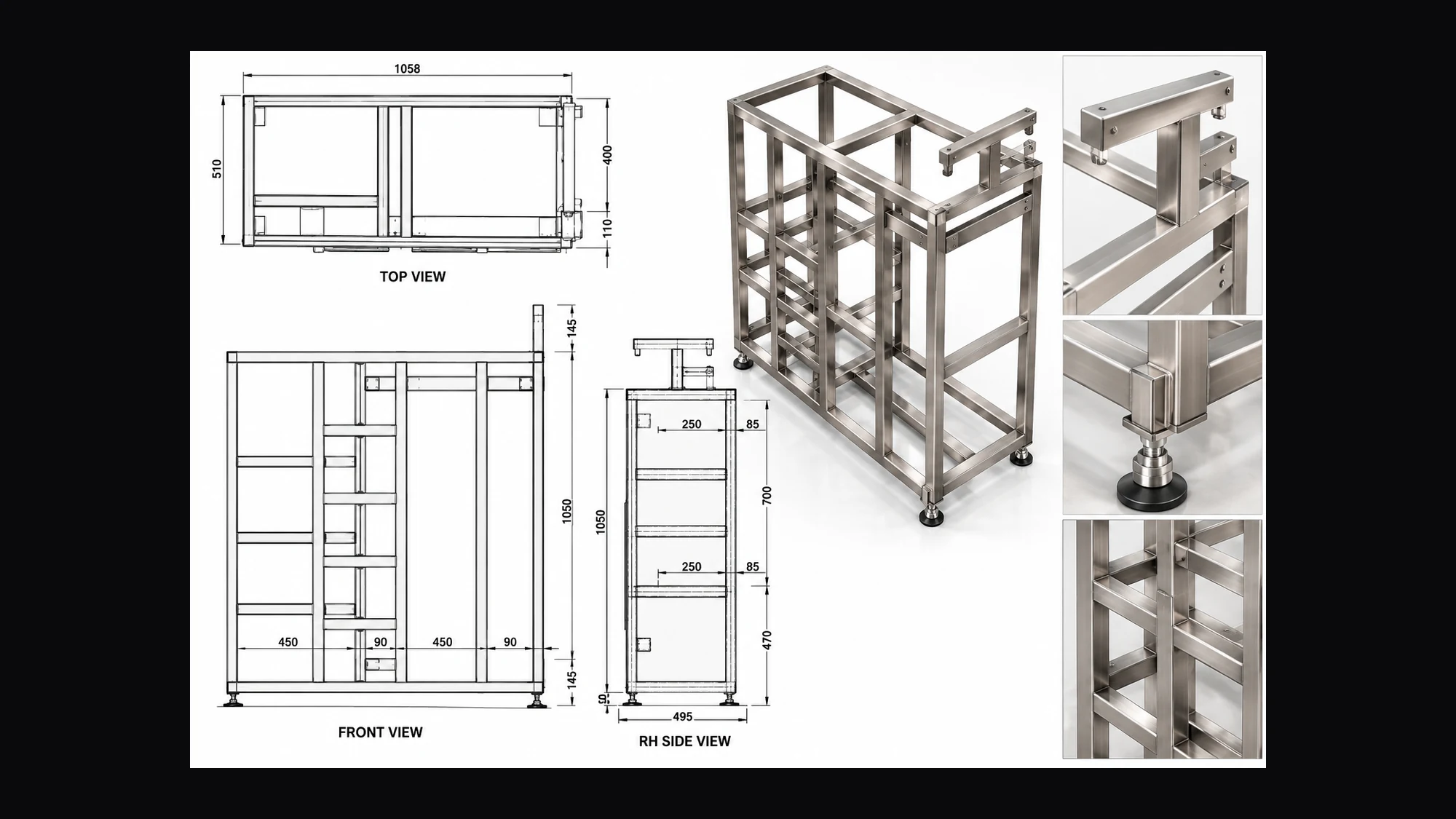

Member schedule and cut list
Weld symbols and joint details
Datum, tolerance and hole-position callouts
Drawings issued in the client's title-block standard
The result
A shop-ready frame drawing set that removed guesswork from cutting, fitting and welding.
WeldedStainless fabrication
FullDimension set
Shop-readyCut list and welds
